2E Desktop monitor mount Pakhtugu

Out of production

SKU: 2EDGERED

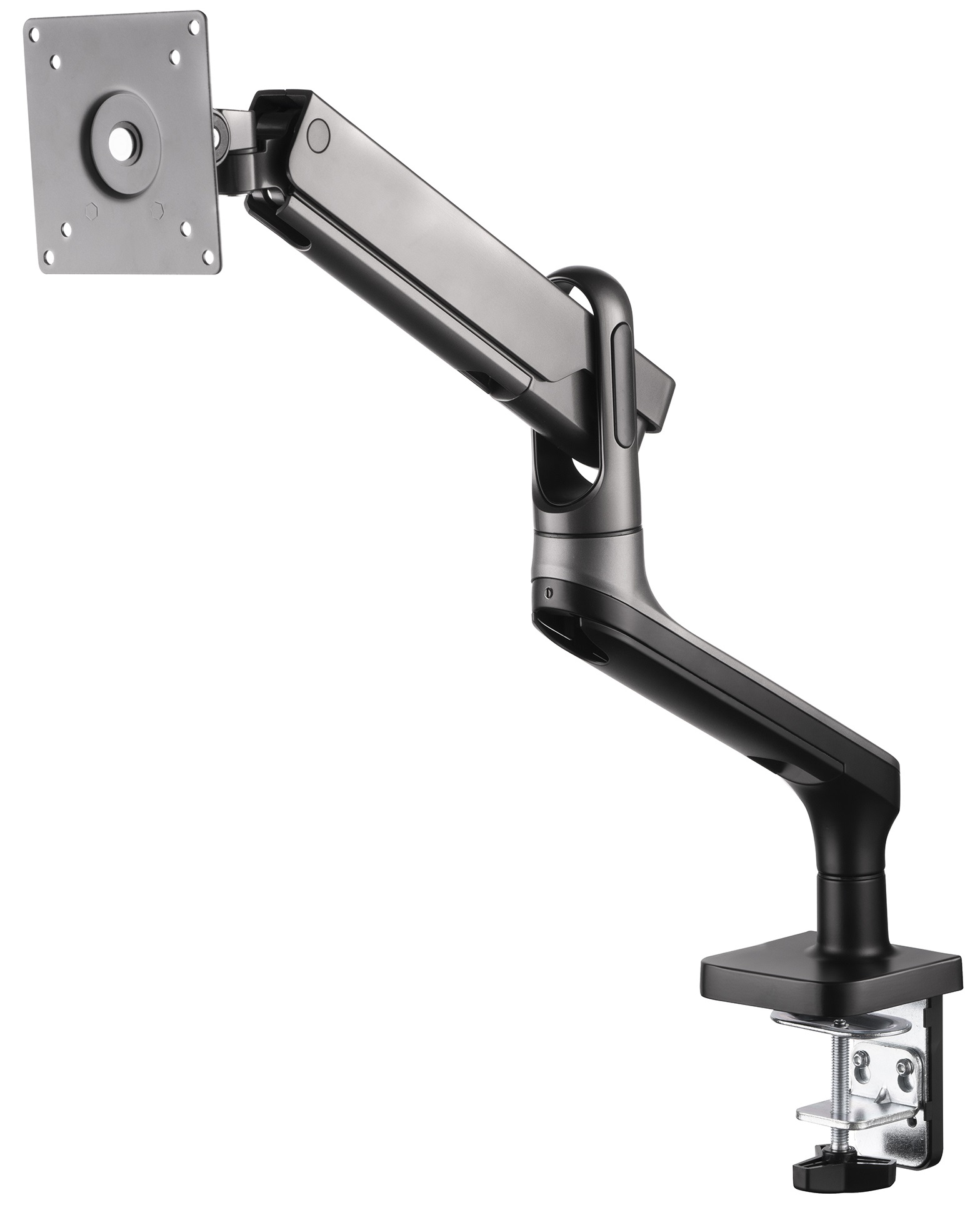

2E desktop monitor mount “Pakhtugu” is in space gray color. The sturdy construction is made of steel, plastic and aluminum. It is intended for one screen with a diagonal of 17-32″ and a weight from 2 to 9 kg. The convenient and reliable bracket is VESA compatible 75 × 75, 100 × 100, a quick-release plate is provided. Effective mount is provided on a work table with a thickness of 10 – 80 mm.

Where to buy

Characteristics

Where to buy

Main:

A type	monitor mount
Type	with tilt, turn and rotation
Minimum diagonal	17 "
Maximum diagonal	32 "
Maximum load	2 kg - 9 кг
Adjustments	tilt / turn / rotation
Кут нахилу вгору	40 °
The angle of downward inclination	40 °
Angle turns	90 ° ±
Compatibility with fasteners VESA	75x75 mm / 100x100 mm
Features	cable management system / rotation: ± 180° / VESA quick release plate / BIFMA certification
Number of monitors	1

Physical:

Colour	gray космічний
Material	steel / plastic / aluminum
Surface	spray painting
Full "arm" length	465
Dimensions ( HxWxD )	115 x 550 x 630 мм
Recommended desktop thickness (clamp fastening)	10 - 80 мм
Recommended thickness of the desktop (mounting on the sleeve)	10 - 85 мм

Go to the store

Manual

Download

High resolution photo

Download

With the help of the cable routing system, all cables can be collected together, organizing the order in the workplace. Thanks to a special adjustable spring mechanism, the optimal position can be adjusted independently – tilt (±40°), turn (±90°), rotation (±180°). Full extension is 465 mm. The dimensions of the mount are 115 × 550 × 630 mm.

Desktop Monitor Mount 2E Pakhtugu
