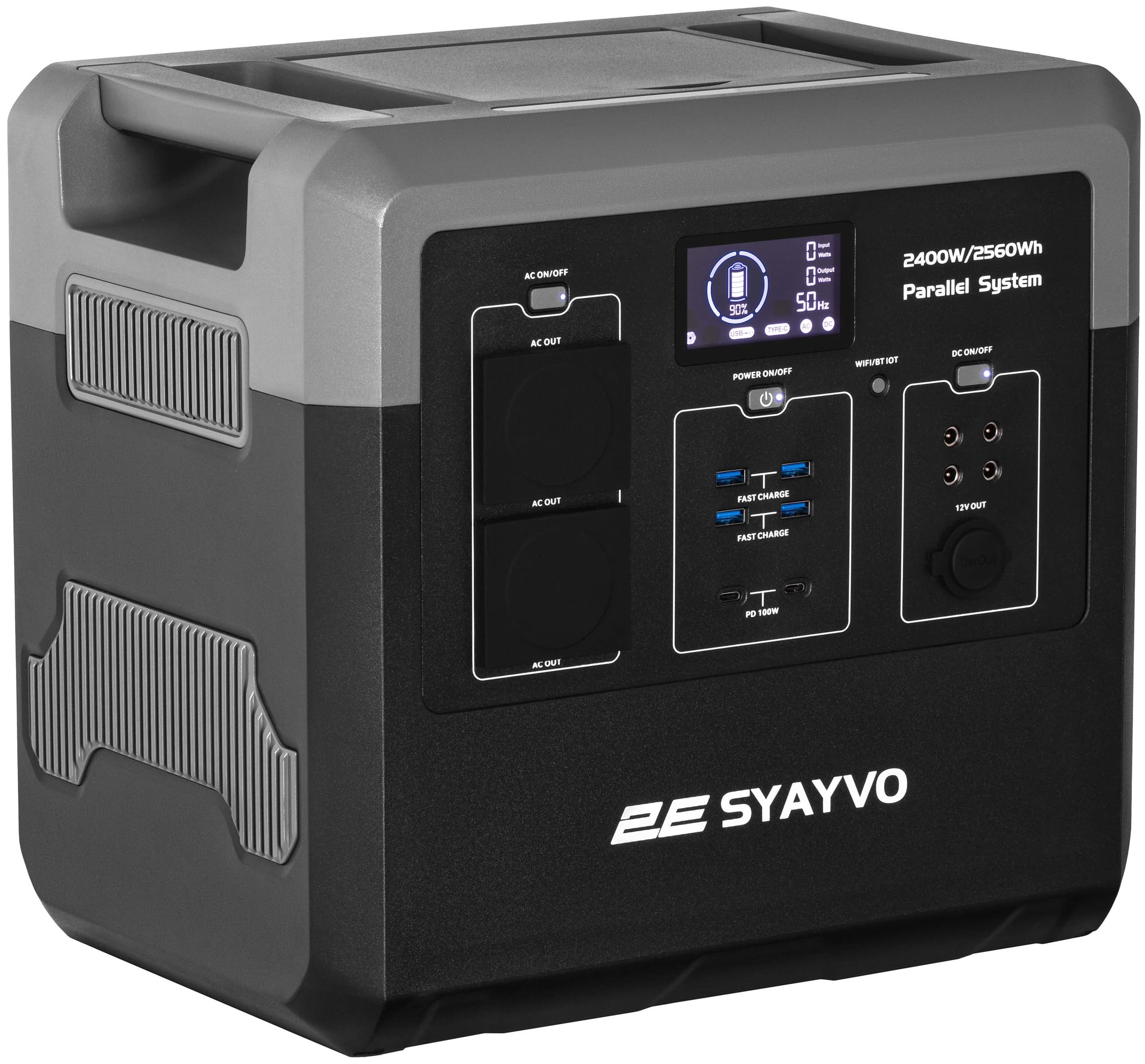

Portable Power Station 2Е DIYA Syayvo 2400W, 2560Wh
2E SYAYVO innovative and ultra-powerful portable charging station of new generation features a rated inverter power of 2,400W (3,000W peak) and a LiFePO4 battery capacity of 2,560Wh. One of the most significant features of the model is the innovative 2E Parallel System.
- Rated inverter power of 2400 W (3000 W peak)
- LiFePO4 battery capacity of 2560 Wh
- 2E Parallel System
- High-power consumers’ connection
- XT60 DC connector
- Built-in MPPT controller
- Ultra-fast charging
- UPS function for uninterrupted power supply
- Modern BMS: six protection systems
| Type | Power station |
| Rated power, W | 2400 |
| Real capacity, W/h | 2560 |
| Real capacity, mAh | 50000 |
| Battery type | Lithium Iron Phosphate (LiFePo4) |
| Battery life | >2000 cycles |
| Peak power, W/s | 3000 |
| Rated voltage, V | 220-240 |
| Frequency, Hz | 50 |
| Input | AC: 220-240 V, 50 Hz (max. 2000 W) MPPT: 10-60 V 13 A (max. 400 W) |
| Output | USB-C (x2): 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A (max. 100W) USB-A (x4): 5V 3A, 9V 2A, 12V 1.5A (one 18W max, two at the same time 15W max) DC: 4x12V 10A (max. 120W) Car port: 12V 10A (max. 120 W) AC: 2x210-230 V, 50 Hz, (max. 2400 W) |
| Solar charger | DC: MPPT - support solar panels with voltage 10-60V 13A up to 400W |
| Operating temperature | -10 °С – +40 °С |
| Package contents | Power station, 220V power adapter, instruction |
| Dimensions, mm | 374x265x345 |
| Weight, kg | 26 |
| Manufactured | China |
| Warranty | 12 months |
The model is equipped with innovative functions and technologies, such as remote control via a mobile app and the 2E Parallel System. This system allows the combination of two stations, doubling not only the power, but also combining the battery capacities! As a result, the solution will be suitable for connecting high-power consumers, such as electric stoves, electric heaters, washing machines, boilers and electric kettles.
Modern, safe and durable LiFePO4 (Class A) power cells ensure long-term operation even under intensive use of 2E SYAYVO. With two AC sockets of 220V Schuko type with grounding, the variety of devices that can be powered is significantly increased.
Manage and monitor the current operating status, adjust the SYAYVO 2E charging station from anywhere: remote monitoring, turning on or off outlets and connectors – everything is possible thanks to the dual wireless BT and Wi-Fi module with full data synchronization via the Tuya Smart application.
Thanks to the innovative 2E Parallel System 2E SYAYVO opens up new horizons of possibilities. By combining the power of the inverters and the battery capacities of the two stations using 2E Dual Power (not included), a total power of 4.8 kW and a combined capacity of 5.12 kWh can be achieved. In this way, even the most demanding devices with high starting currents, which previously could not work from less powerful stations, will now receive the necessary energy without problems. The advantage of the 2E Parallel System is the intelligent, even distribution of consumption between two stations, ensuring optimal use of the resources of each, preventing excessive depletion. Moreover, when using 2E Dual Power, additional connection options are available, as the station connection system is equipped with a 30 A power socket.
One of the key features is ultra-fast and smart charging via 220V grids or any other AC source: from 220V grids or generator – AC input up to 2,000W! This allows charging the power station from 0% to 80% in just 60 minutes, and up to 100% in 1.5 hours. At the same time, the charging station does not consume peak power at the start, but does it discretely, “measuring” the capabilities of the network.
2E SYAYVO is equipped with an XT60 DC connector and a built-in MPPT controller with a power of up to 400W, a voltage from 10V to 60V, and a current of up to 13A. This allows to charge the power station from portable solar panels of almost any capacity (up to 400W). For example, a 400 W panel on a clear, sunny day can recharge the 2E station in just 6-7 hours! In the case of parallel connection, the possibility of doubling the solar power up to a total of 800W is provided, using each station’s MPPT controller. Charging with a car cigarette lighter or other DC battery is also available.
Using the resource (cycles) of the battery only when necessary! By connecting 2E SYAYVO between the power source and the consumer, at the moment when there is voltage in the grid, the charging station will pass this electricity “through”, using neither the battery nor the built-in inverter, thus saving their resource. In the event of power outage in the main grid, the charging station switches power to the built-in battery with a minimum delay, “imperceptible” for sensitive equipment. Caution: using the charging station as a typical UPS is not recommended.
- · Overcharge protection.
- · Deep discharge protection.
- · Current overload protection.
- · Overheat protection.
- · Short circuit protection.
- · Overvoltage protection.
The design includes a flashlight that serves as an additional economical light source. Convenient handles on the sides ensure comfortable transportation, and thanks to the built-in carrying case with a lid, it is easy to store all the necessary cables and adapters.
