Mobile router 2E PowerLink (MiFi-1 2024) LTE, Wi-Fi4, 1xUSB, 1xCRC9 white
The 2E PowerLink MiFi 1 is the optimal solution for those who value connection speed, compactness, and convenience. This versatile 4G LTE Wi-Fi router is suitable for work, travel and M2M (Machine-to-Machine) communications, providing a stable connection where you need it most.
- Form factor: USB flash card
- Body material: plastic
- 1 × nano SIM (4FF)
- Network: 4G FDD LTE: B3/7/8/20 (1,800/2,600/900/800 MHz), TDD-LTE: B38/40/41, 3G UMTS/WCDMA: B1/8 (2,100/900 MHz)
- LTE: LTE Cat 4 (150 Mbps download speed, 50 Mbps upload speed)
- Multi-mode LED indicator
- Processor: ASR1803S LTE modem, AIC8800DW Wi-Fi IC
- Memory: 2 GB EMMC + 512 MB DDR2
- Interfaces: USB 2.0 Type-A, CRC-9 (male)
- Antennas: built-in 4G LTE and Wi-Fi
- WiFi parameters (IEEE): Wi-Fi IEEE 802.11 b/g/n 2.4 GHz. Simultaneous connection of up to 10 users
- Additional features: 24/7 traffic statistics; WEP/ WPA PSK/ WPA2 PSK encryption; IPv4; MAC address filter; web interface; SMS; phone book; USB modem mode (RNDIS virtual network card)
- Size: 96.5 × 31.2 × 11.6 mm
- Weight: 26 g
| Type | мобільний маршрутизатор |
| Type of modem | LTE-modem |
| Interface | 1x NanoSIM (4FF) / USB 2.0 Type A |
| Form Factor | mobile (USB Flash-карта) |
| RAM memory | 512MB (DDR2) |
| Flash memory | 2 Гб (EMMC) |
| Operating system support | Mac OS / Windows (XP/7/8/10/Vist) / Android / iOS |
| Standards | IEEE 802.11b / IEEE 802.11g / IEEE 802.11n / 3G (UMTS/WCDMA: B1/8 (2100/900 МГц)) / 4G LTE (FDD: B3/7/8/20 (1800/2600/900/800 МГц); TDD: B38/40/41) |
| IEEE 802.11 communication standard | b/g/n |
| Antenna Type | external/detachable / built-in (4G LTE) |
| CPU | ASR1803S / AIC8800DW |
| Maximum connection speed | 150 Mbps (завантаження), 50 мбіт/с (передача) |
| Supported protocols | IPv4 |
| Power Supply | USB (від порта ПК чи ноутбука, від мережевого чи автомобільного зарядного пристрою 5В/1А, від універсальної мобільної батареї Powerbank) |
| Security features | MAC address filter (чорний список) / WEP / WPA/WPA2-PSK |
| Maximum associated clients | up to 10 users |
| Features | IPv4 support / RESET button / Traffic monitor 24/7 / рознім для під'єднання зовнішніх антен: 1xCRC-9 (male) / веб-інтерфейс / SMS, Телефонна книга / Робота в режимі USB-модему (RNDIS віртуальна мережева карта) |
| Equipment | Warranty / router / Manual |
| Additional information | LED indicator (багаторежимний) |
| Tested ambient temperature | -10 °C - 60 °C |
| Storage temperature | -45...85 °C |
| Allowable relative operating humidity | 10-80% (без утворення конденсату) |
| Allowable relative storage humidity | 10-95% |
| Dimensions | 96,5 х 31,2 х 11,6 |
| The weight | 26 g |
Compact Design and Impressive Mobility
The 2E PowerLink MiFi 1 is designed in a USB flash card form factor, making it portable and easy to transport. The lightweight white plastic body is not only stylish, but also practical to use. Thanks to its compact size (96.5 × 31.2 × 11.6 mm) and weight of only 26 g, the device can be carried in a pocket or bag – it does not take up much space.
Easy Connection with no Additional Settings

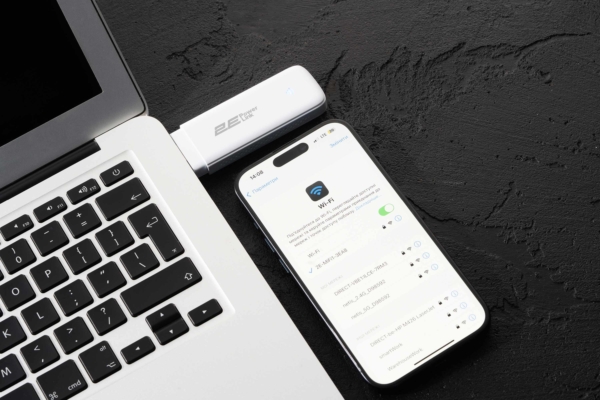

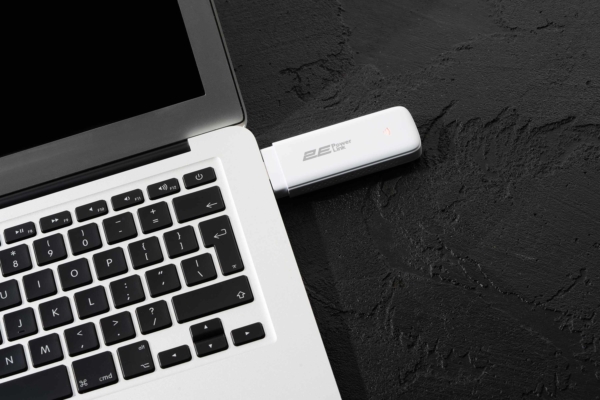

The device is designed to allow the user to connect to the network without any extra effort. To use the router as a mobile modem, you need to insert a 4G SIM card and connect the device to a USB port on your laptop or PC. The necessary drivers will be automatically installed, and the router will work without any additional settings. If you plan to use it as a Wi-Fi router, just connect the 2E PowerLink MiFi 1 to a 5V DC charger and you’re ready to go!
Fast and Stable Connection
The router supports all 3G/4G frequencies of Ukrainian operators (Vodafone, Kyivstar, Lifecell), guaranteeing a stable signal both in cities and in remote regions. Thanks to LTE Cat 4 support, the device delivers speeds of up to 150 Mbps for downloading and 50 Mbps for uploading data, allowing you to enjoy fast surfing, online streaming, and online gaming. In addition, the design includes a CRC-9 connector for an external LTE antenna.
Power and Versatility: Connect up to 10 Devices!

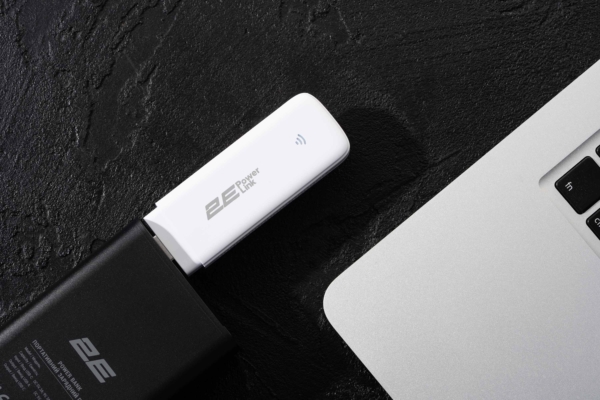

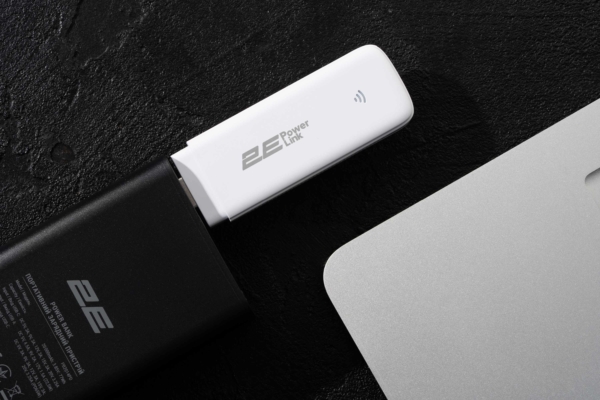

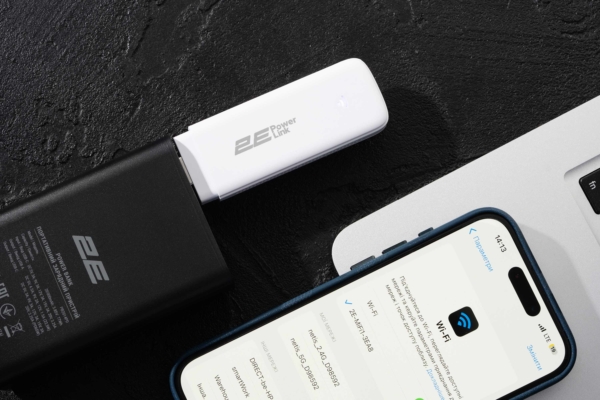

With the 2E PowerLink MiFi 1, you can connect up to 10 devices to your Wi-Fi access point at the same time, including smartphones, tablets, laptops, security cameras, or smart home devices. The router supports 802.11 b/g/n Wi-Fi at 2.4 GHz, and thanks to the AIC8800DW chip, it provides stable and fast operation even under high loads. Given the presence of a USB 2.0 Type-A connector, the 2E PowerLink MiFi 1 can be connected to a powerbank, car charger or a regular 5V/1A USB adapter.
Additional Features for Convenience
The model has an intuitive web interface in Ukrainian, which allows you to easily configure the device, as well as view traffic usage statistics, create a blacklist of MAC addresses and limit the speed. In addition, WEP/WPA PSK/WPA2 PSK encryption functions guarantee network security. The design also includes an LED indicator to show the status of operation.
Mobility and Multi-Functionality for a Variety of Use Cases
This router is suitable for a variety of use cases.
- For home: Set up a Wi-Fi network for your smart TV, security cameras, or smart home devices.
- For work: Provide a reliable Internet connection for office equipment, cash registers, or customers in a store.
- For traveling: Ideal for providing a stable internet connection for your laptop while on the road or on a business trip.
Expanding the Possibilities: External Antennas for Improved Signal Strength
The 2E PowerLink MiFi 1 is equipped with a CRC-9 (male) connector for external antennas, which provides the ability to improve signal quality in areas with poor coverage. An external LTE antenna is not included. If necessary, it is recommended to use antennas that support FDD LTE B3/7/8/20 (1,800/2,600/900/800 MHz) and TDD LTE B38/40/41 bands. The correct location of the antenna – on a balcony, roof or in a car – will significantly improve the stability of the connection, especially in a «weak» network. The antenna cable (50 Ohm) should be connected to the router via the CRC-9 connector. If you plan to use a directional antenna, you need to configure the antenna direction to the base station of your mobile operator using, for example, the CellMapper application for Android devices.
