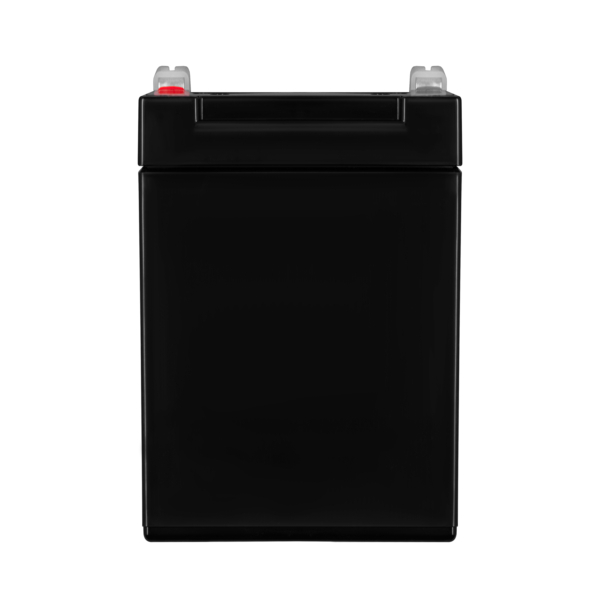

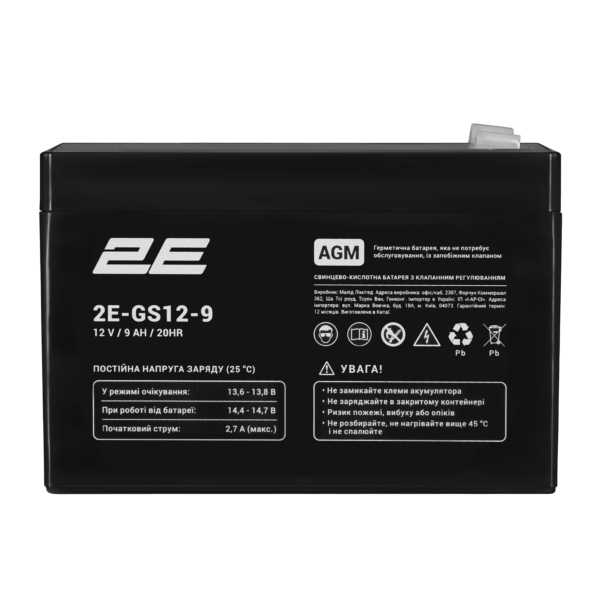

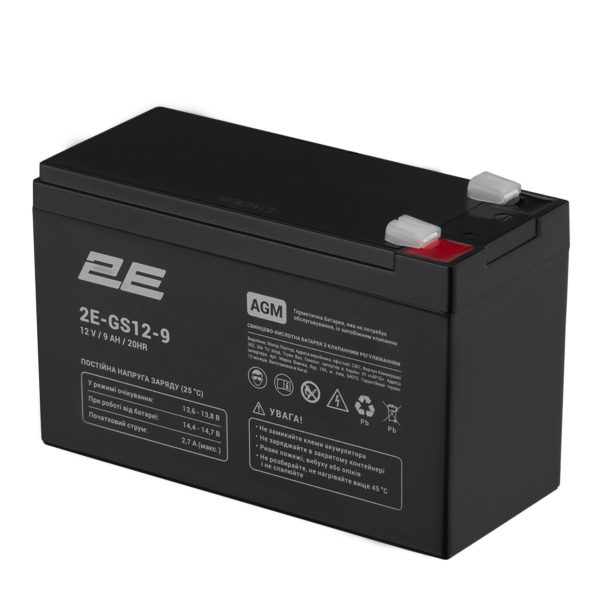

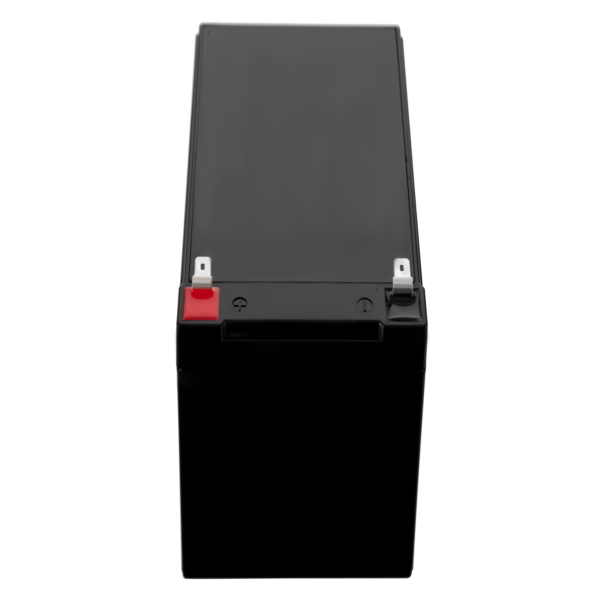

2E GS, 12V, 9Ah, AGM
In today’s world, where uninterrupted power supply is a necessity, not a luxury, selecting the right battery is crucial. The 2E GS 12V model, based on AGM technology (Absorbent Glass Mat), offers a balance between stable performance, longevity, and compactness.
- VRLA AGM Technology
- Capacity: 9 Ah (C20)
- Max. discharge current up to 102 A for 5 seconds
- Max. charge current: 2.55 A
- Terminal type: F2
- Service life up to 5 years in buffered mode
- Low self-discharge: 3% per month at 20°C
- Not designed for cyclical use
- Operating temperature range: +25±3°C
- Size: 151 × 94 × 65 mm
- Weight: 2.55 kg
| A type | AGM VRLA |
| Rated voltage | 12 V |
| The nominal capacity | 9 Ah (С20) |
| Maximum charge current | 2.5A |
| Type of terminals | F2 |
| Maximum discharge current | 102 A (5 second) |
| The optimum operating temperature | 25°C±3°C |
| Self-discharge at 20°C (% per month) | 3 |
| Life time | 5 years in buffer mode |
| Colour | black |
| The weight | 2.55 kg |
| Dimensions (LxWxH) mm | 65 x 151 x 94 |
VRLA AGM Technology: The Heart of Reliability
This battery belongs to the VRLA (Valve Regulated Lead Acid) type, utilizing AGM technology, where the electrolyte is absorbed by fiberglass separators. This design makes the battery sealed, so it requires no maintenance and guarantees high resistance to vibrations and temperature fluctuations. It is an optimal choice for buffered operation – when the power source is not continuously on but only activates in case of a power outage in the main grid.
Maximum Energy in a Convenient Form Factor
With a size of 151 × 94 × 65 mm and a weight of 2.55 kg, the battery has a capacity of 9 Ah (C20). In critical moments, the battery can provide a maximum discharge current of 102 A for 5 seconds, ensuring a reliable startup for systems. The maximum charge current is 2.55 A, ensuring efficient charging without overload. The F2 terminal type guarantees a simple and reliable connection, no matter the system the device is integrated into.
5 Years of Peace of Mind – With Proper Maintenance
The declared service life of the battery is 5 years in buffered mode, meeting professional requirements for IT infrastructure, video surveillance systems, security alarms, and emergency lighting. However, this lifespan can only be achieved by maintaining the recommended temperature range (25±3°C) and performing regular maintenance after each use, including fully charging the battery.
Operational Precautions: Simple Rules for Long Service Life
This model is not intended for cyclical use, meaning it should not be used for standalone solar stations, portable inverter systems, or as a power source for electric transportation. Violating this principle will significantly shorten its lifespan.
Another important recommendation is not to exceed the allowable currents, not to operate the battery beyond established norms, and to calculate the storage system's capacity based on the battery class. By following the instructions, the battery will operate stably and for a long time, with minimal self-discharge – only 3% per month at a temperature of +20°C.
