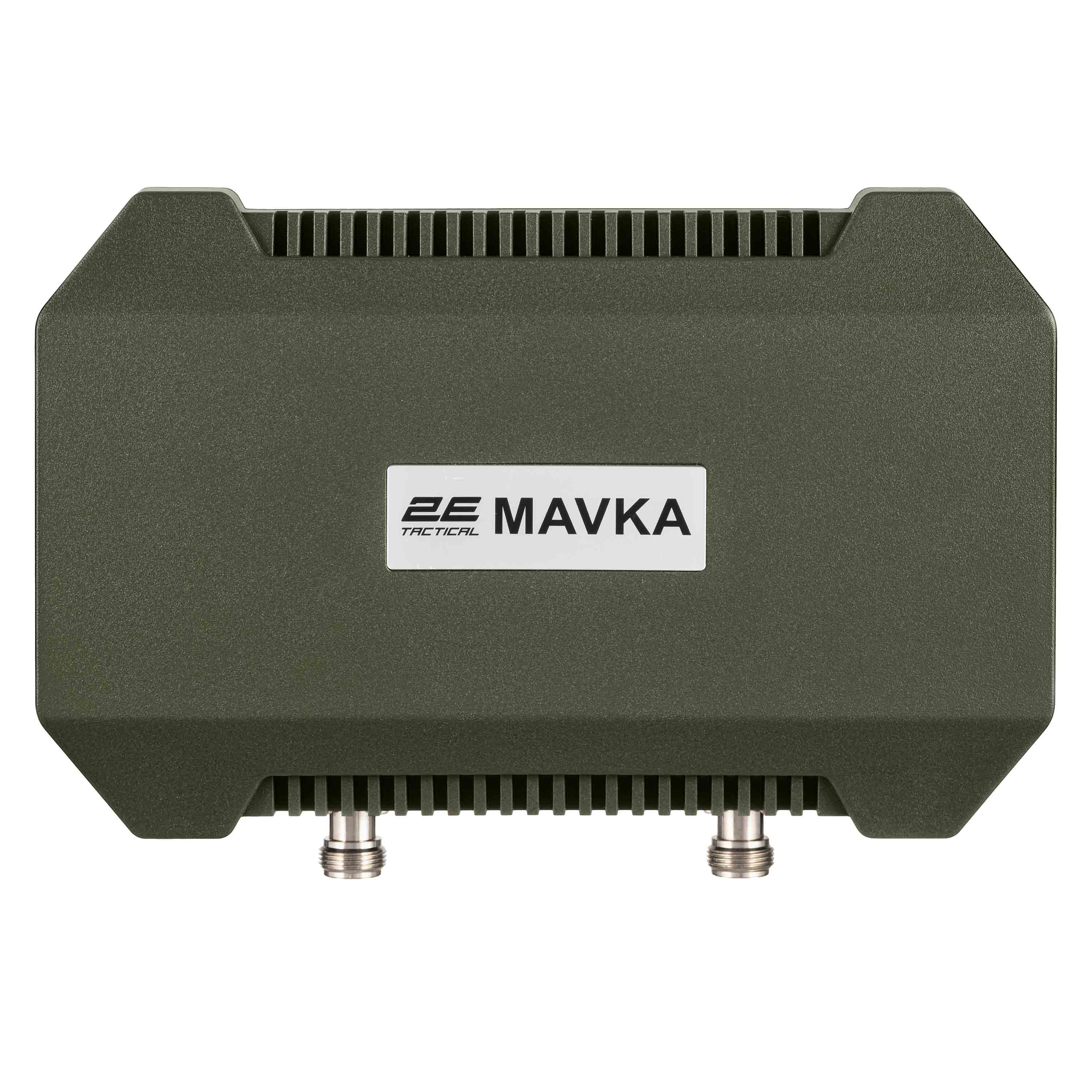

Active Antenna 2E Tactical MAVKA GREEN for DJI, Autel(V2), FPV
SKU: 2E-AAA-MG-2B10
Characteristics
Where to buy
| Type | Amplifier |
| Compatibility | DJI, Autel(V2), FPV drones |

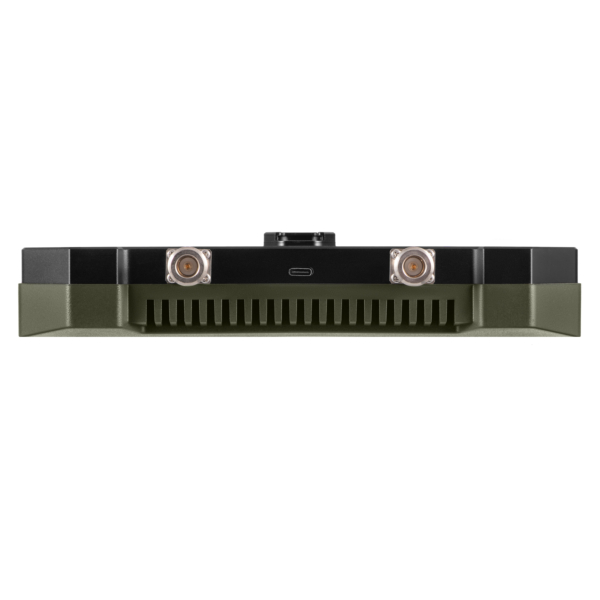

| Interfaces | USB Type-C |
| Frequency range, GHz | 2.4-2.5/5.15-5.85 |

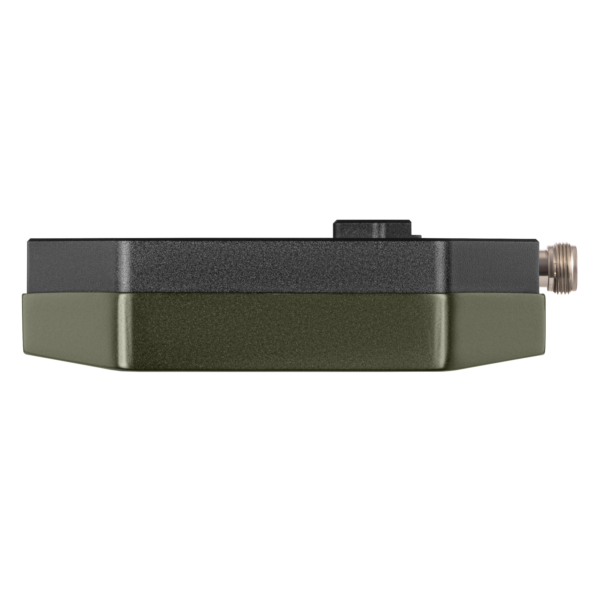

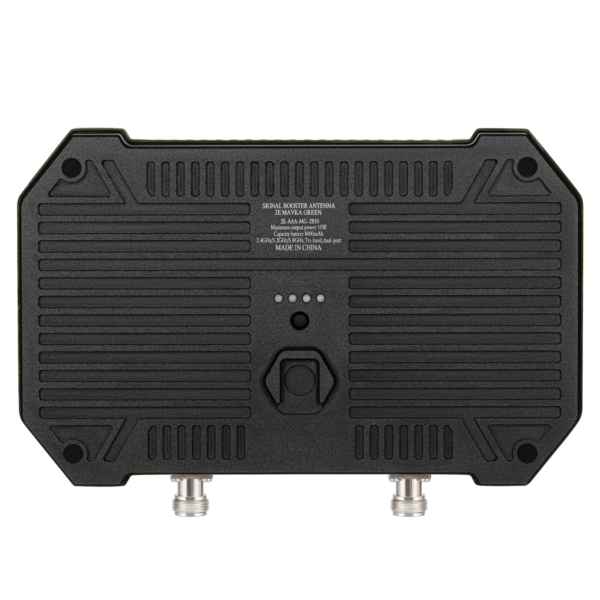

| Type of cable connector | N-type (female) |
| Maximum output power, W | 2x10 |
| Antenna gain, dB | 15±1/18±1 |
| Capacity | 8000 mAh |
| Reception gain, dB | 16±1 |
| Transmission Gain, dB | 18±1 |
| Trigger input power, dBm | 3-23 |
| EVM | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz, 3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz |
| Noise level, dB | Up to 2.5 |
| Consumption | 2.2A,12V |
| TX/RX switching delay, ms | <1 |
| Charging | 5W/2A |
| Material | Aluminium |

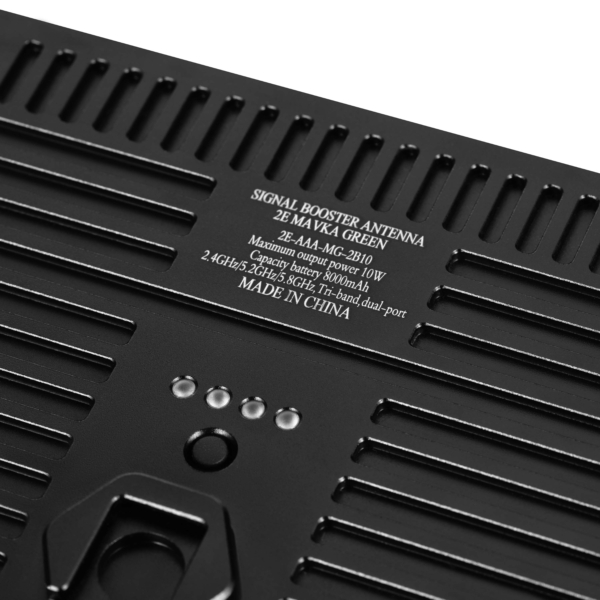

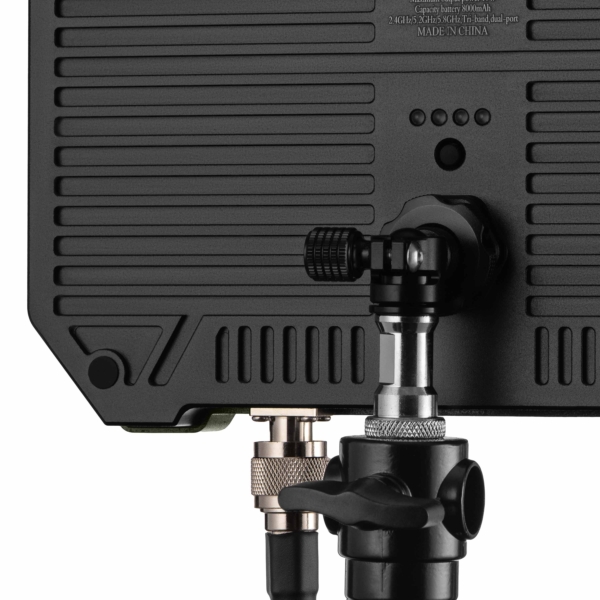

| Features | 4 Blue LED indicators |
| Operating temperature | -40 °С – +70 °С |
| Operating humidity | Up to 95% |
| Dimensions, mm | 230x146x39 |
| Warranty | 6 months |
